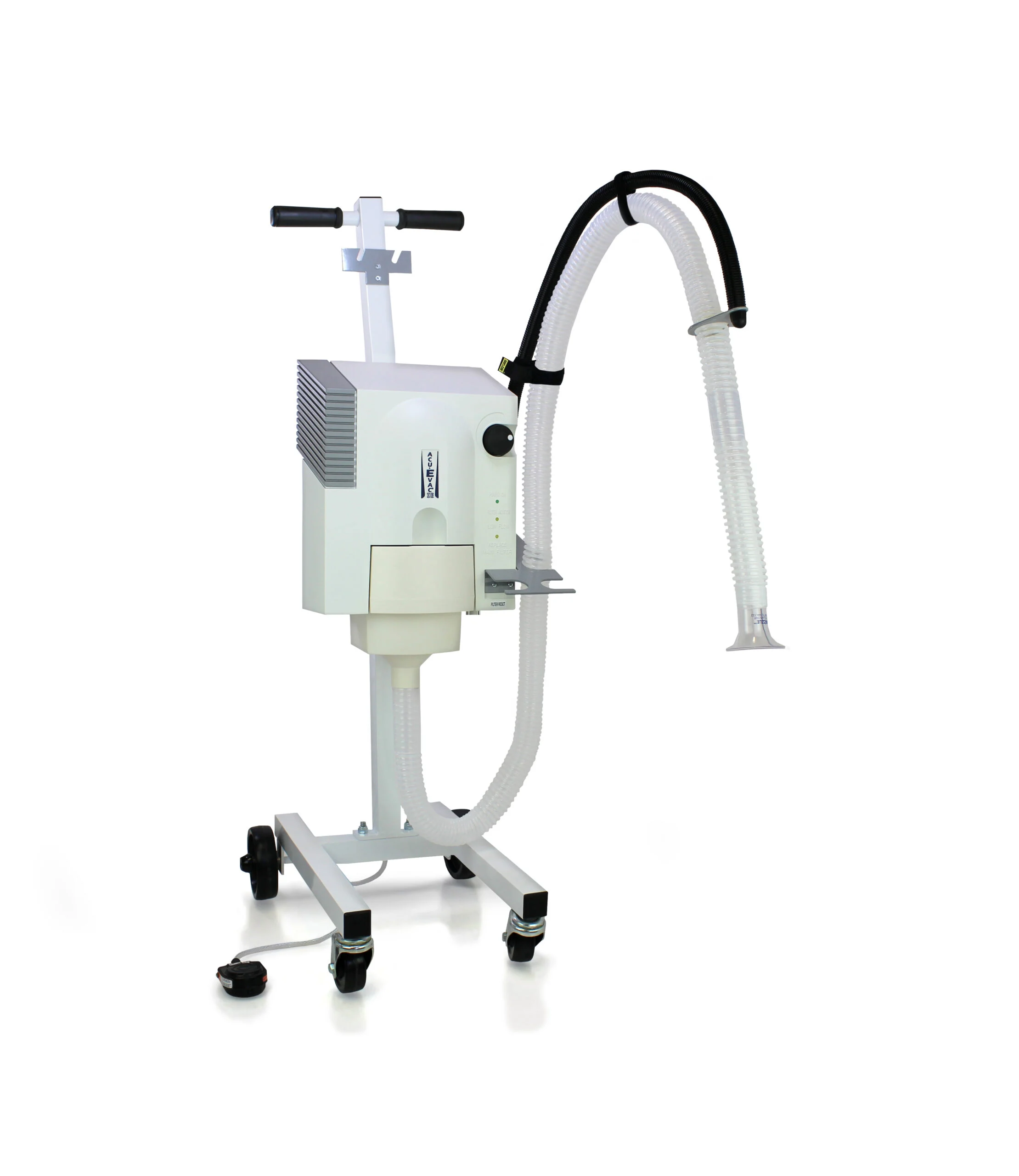

Acu-Evac Surgical Smoke Evacuator

Questions? Speak with a Product Specialist!

Configuration	Acu Evac Starter IE-1W Wall Mount, Acu Evac Starter IE-1 Cart Mount, Acu Evac Starter II-1W Wall Mount, Acu Evac Starter II-1 Cart Mount
Electrosurgery Brand	Acuderm

Configuration

Acu Evac Starter IE-1W Wall Mount, Acu Evac Starter IE-1 Cart Mount, Acu Evac Starter II-1W Wall Mount, Acu Evac Starter II-1 Cart Mount

Electrosurgery Brand

Acuderm

Features

Acuderm’s all purpose surgical smoke evacuator

Suitable for use with CO2, erbium, hair removal and other laser or electrosurgical units in open procedures

Patented 3 Inch clear hyperbolic horn with 1.3 Inch collection nozzle

98% Coefficient of entry

4% Loss, fraction of velocity head

For maximum collection, hold within 3 Inch field of collection

Front end filter loads within seconds, rotary variable air flow dial, variety of mounting options

ULPA/Carbon filter, rated at 99.99997% at 0.01 micron and MPPS 0.12 micron main filter

Sealed, closed system housing

Electronic timer – 16 hours, plus low flow sensor/full filter alert

AC Motor

63 Inch H2O static suction

Non-corrosive/non-conductive cabinet

8 Foot Hospital grade cord/plug

Specifications

Acu-Evac® IE

Motor (Model IE):AC

Air Volume (Model IE): 100+ CFM

Air Velocity: >11,000 FPM

Static Suction (Model IE): 63 inches H20

Noise: <50db

Power: 110-120V 50/60Hz at 7.0 amps or 220-240V 50/60 Hz at 4.0 amps

Collection Nozzle: Patented 3-inch Clear Hyperbolic Horn with 1.3 inch I.D.

Coefficient of Entry: 98%

Loss, Fraction of Velocity Head: 4%

Field of Collection: For maximum collection, hold within 3 inches

Convenience Features: Front end filter loads within seconds, rotary variable air flow dial, variety of mounting options

Main Filter: ULPA/Carbon filter, rated at 99.99997% at 0.01 micron and MPPS 0.12 micron

Housing: Sealed, closed system

Filter Life Monitors: Electronic timer – 16 hours, PLUS low flow sensor/full filter alert

Footswitch: Pneumatic

Cabinet: Non-corrosive/non-conductive

Cabinet Depth: 6.5 inches

Cabinet Height: 15.5 inches

Cabinet Width: 11.5 inches

Weight: 16.5 lbs.

Footprint (with cart): 16 inches Width X 19.5 inches Depth X 44.5 inches Height

Cord/Plug: 8 ft. hospital grade

Classification: Type BF Class 1

Certification: UL2601-1, 2nd Edition, CAN/CSA C22.2 Standard 601.1-M90, CE Certified (220-240V Models)

Warranty: 2 years (parts & labor)

Acu-Evac® II

Motor (Model II):DC

Air Volume (Model II): 64+ CFM

Air Velocity: >11,000 FPM

Static Suction (Model IE): 63 inches H20

Noise: <50db

Power: 110-120V 50/60Hz at 7.0 amps or 220-240V 50/60 Hz at 4.0 amps

Collection Nozzle: Patented 3-inch Clear Hyperbolic Horn with 1.3 inch I.D.

Coefficient of Entry: 98%

Loss, Fraction of Velocity Head: 4%

Field of Collection: For maximum collection, hold within 3 inches

Convenience Features: Front end filter loads within seconds, rotary variable air flow dial, variety of mounting options

Main Filter: ULPA/Carbon filter, rated at 99.99997% at 0.01 micron and MPPS 0.12 micron

Housing: Sealed, closed system

Filter Life Monitors: Electronic timer – 16 hours, PLUS low flow sensor/full filter alert

Footswitch: Pneumatic

Cabinet: Non-corrosive/non-conductive

Cabinet Depth: 6.5 inches

Cabinet Height: 15.5 inches

Cabinet Width: 11.5 inches

Weight: 16.5 lbs.

Footprint (with cart): 16 inches Width X 19.5 inches Depth X 44.5 inches Height

Cord/Plug: 8 ft. hospital grade

Classification: Type BF Class 1

Certification: UL2601-1, 2nd Edition, CAN/CSA C22.2 Standard 601.1-M90, CE Certified (220-240V Models)

Warranty: 2 years (parts & labor)

Reviews

Features

Acuderm’s all purpose surgical smoke evacuator
Suitable for use with CO2, erbium, hair removal and other laser or electrosurgical units in open procedures
Patented 3 Inch clear hyperbolic horn with 1.3 Inch collection nozzle
98% Coefficient of entry
4% Loss, fraction of velocity head
For maximum collection, hold within 3 Inch field of collection
Front end filter loads within seconds, rotary variable air flow dial, variety of mounting options
ULPA/Carbon filter, rated at 99.99997% at 0.01 micron and MPPS 0.12 micron main filter
Sealed, closed system housing
Electronic timer – 16 hours, plus low flow sensor/full filter alert
AC Motor
63 Inch H2O static suction
Non-corrosive/non-conductive cabinet
8 Foot Hospital grade cord/plug

Smoke Evacuator Essentials

Non-Corrosive/Non-Conductive Cabinet

Electronic Timer

3-inch Clear Hyperbolic Horn

8 Foot Hospital Grade Cord/Plug

Commonly Asked Questions

What are some key differences between the Acu-Evac IE and the Acu-Evac II?

The Acu-Evac IE uses an AC Monitor and has higher airflow at 100+ CFM. The Acu-Evac II uses a DC Motor and has a lower airflow at 64+ CFM.

Does the Acu-Evac Surgical Smoke Evacuator have a filter?

Yes, the Acu-Evac Surgical Smoke Evacuator is equipped with a ULPA/Carbon filter, rated at 99.99997% at 0.01 micron and MPPS 0.12 micron main filter.
