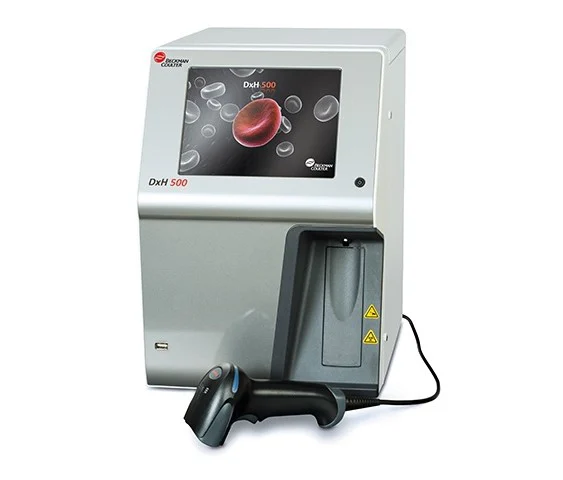

Beckman Coulter DxH 500 Hematology Analyzer

$15,935.00

mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
888.354.2968
myemail Email Us!
Get in Touch

The Beckman Coulter DxH 500 Hematology Analyzer can help you improve clinical decision-making and efficiency. Built on proven cellular analysis technology, the DxH 500 provides precise platelet counts and accurate first-pass results.  With accurate and comprehensive analysis in your low-volume lab setting, your practice can reduce costly test reruns and time-consuming manual reviews. The DxH 500's intuitive user interface also makes it easier to learn and operate, freeing your staff to focus on patient care.

Hematology Brand

Beckman Coulter

Features

Spend time with your patients, not your analyzer

  • Maximize uptime with built-in reliability, automatic start-up, efficient reagent usage and easy reagent replacement
  • Free up time to focus on higher value activities with the ability to change all three reagents in less than five minutes
  • Use 50% less reagent, consume reagents half as fast, and take less time changing and restocking reagents with the analyzer’s efficient approach

Leverage single-sample precision

  • Obtain accurate results with samples as small as 12 μL of blood
  • Save time by repeating testing on the same sample without another draw

Improve laboratory efficiency

  • Enable fast analysis with the analyzer’s unique fluidic design
  • Conserve valuable bench space with the DxH 500 hematology analyzer’s small footprint and integrated computer
  • Reduce operational complexity with the simplified user interface, which enables any command to be performed in three touches or less
  • Advance your efforts to go paperless with the analyzer’s bi-directional LIS Interface

Reduce operating costs

  • Reduce disposal costs with cyanide-, azide- and formaldehyde-free reagents
  • Lower electricity bills with the DxH 500’s efficient power handling

Specifications

Mode of Operation

Open vial sampling

Throughput

60 samples per hour

Menu/Test Parameters

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, LY%, LY#, MO%,
MO#, NE%, NE#, EO%, EO#, BA%, BA#

RUO Parameters*

IMM%, IMM#, LHD, MAF, PCT, PDW
(*RUO parameters are not available for use in the United States.)

Sample Volume

  • 12 µL of venous or micro-collected whole blood
  • 20 µL of whole blood for pre-dilute analysis

User Interface

  • Touch screen
  • Handheld barcode reader

Power Requirements

  • 100 – 240 VAC
  • 50/60 Hz
  • Single phase with ground

Power Consumption

Less than 120W

Noise Specifications

 Less than 80 dBa

Atmospheric Pressure

700 – 1,060 mbar

Operational Ambient Temperature

18 – 32°C (64.4 – 89.6°F)

Humidity

80% relative humidity (non-condensing) at 32° C (89.6° F)

Altitude

Up to 3,000 meters (9,842.5 feet)

Reagents

  • DxH 500 Lyse          500 mL
  • DxH 500 Cleaner     500 mL
  • DxH 500 Diluent      10 L

External Storage – USB

USB 2.0 compatible

LIS

Supports Serial (RS-232) and Ethernet communication

Printer

Optional USB PCL 6-compatible printer

Data Storage

  • 30,000 patient results including graphics, flags, codes, and messages
  • 12 control files, each with a maximum of 100 runs

Languages (coming soon)

Czech, English, French, German, Iberian Portuguese, Italian, Japanese, Portuguese, Romanian, Russian, Spanish

Weight and Dimensions

  • Depth: 430 mm (17 in.)
  • Width: 270 mm (11 in.)
  • Height: 406 mm (16 in.)
  • Weight: 11.4 kg (25.1 lbs)
Reviews
Features
  • Maximize uptime with built-in reliability, automatic start-up, efficient reagent usage and easy reagent replacement
  • Free up time to focus on higher value activities with the ability to change all three reagents in less than five minutes
  • Use 50% less reagent, consume reagents half as fast, and take less time changing and restocking reagents with the analyzer’s efficient approach
  • Obtain accurate results with samples as small as 12 μL of blood
  • Save time by repeating testing on the same sample without another draw
  • Enable fast analysis with the analyzer’s unique fluidic design
  • Conserve valuable bench space with the DxH 500 hematology analyzer’s small footprint and integrated computer
  • Reduce operational complexity with the simplified user interface, which enables any command to be performed in three touches or less
  • Advance your efforts to go paperless with the analyzer’s bi-directional LIS Interface
  • Reduce disposal costs with cyanide-, azide- and formaldehyde-free reagents
  • Lower electricity bills with the DxH 500’s efficient power handling
Hematology Essentials

  Simplified User Interface

Unique Fluidic Design

Automatic Start-Up

Integrated Computer
