SKU: B40602
Category: .

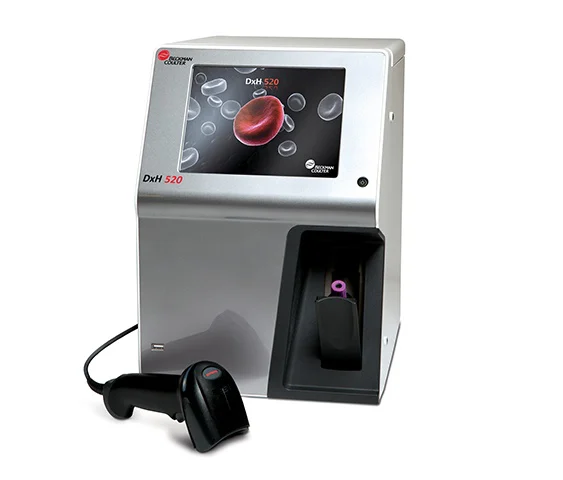

Beckman Coulter DxH 520 Hematology Analyzer

$21,195.00

mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
888.354.2968
myemail Email Us!
Get in Touch

The Beckman Coulter DxH 520 Hematology Analyzer is a 5-part differential closed tube hematology analyzer that is designed to help your low-volume laboratory enhance patient care through increased productivity with reduced costs. The DxH 520 system delivers critical results the first time with accuracy, with as little as 375 µL tube fill-volume and an aspiration of only 17 µL—ideal for pediatric or difficult-draw samples. Technologists can experience safety without compromise with closed tube technology, providing optimal security against blood-borne pathogens. The DxH 520 hematology analyzer also has one of the smallest footprints in its class, uses only three reagents, and features a robust patient data and QC management package.

Hematology Brand

Beckman Coulter

Features

Maximize laboratory productivity

  • Optimize uptime with proven system reliability and an automated cleaning cycle
  • Experience infrequent and simple reagent reloading—easily change all three reagents in less than five minutes
  • Gain powerful patient and QC data management tools for paperless operations and to reduce clerical errors
  • Discover a more efficient use of laboratory counter space with the analyzer’s compact footprint—smallest in its class

Deliver high-quality clinical results

  • Ensure a more accurate differential with proprietary dynamic gating
  • Improve flagging and reduce slide reviews while maintaining effective clinical sensitivity

Reduce overall operating costs

  • Lower overhead costs by consuming fewer reagents and using less power due to a reduction in moving parts and a more intelligent, energy-optimizing design
  • Eliminate disposal costs with cyanide-, azide- and formaldehyde-free reagents

Specifications

Mode of Operation

Open and closed tube sampling

Sample Aspiration Volume

17 μL of venous or micro-collected whole blood
20 μL of whole blood for pre-diluted analysis

Throughput

55 closed tube samples per hour, 60 open tube samples per hour

Menu/Test Parameters

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, LY%, LY#, MO%, MO#, NE%, NE#, EO%, EO#, BA%, BA#

RUO Parameters

 IMM%, IMM#, LHD, MAF, PCT, PDW

Data Storage

30,000 patient results, including graphics, flags, codes and messages; 12 control files, each with a maximum of 150 runs

User Interface

 Touch screen; handheld barcode reader

Power Requirements

  • 100-240 VAC 50/60 Hz
  • Single phase with ground

Power Consumption

Less than 120 W

Operational Ambient Temperature

18-32°C (64.4-89.6°F)

Humidity

80% relative humidity (non-condensing) at 32°C (89.6°F)

Altitude

Up to 3,000 meters (9,843 feet)

External Storage

Supports USB 2.0 (five ports)

LIS

Supports serial (RS-232) and Ethernet communication

Printer

Optional USB printer

Languages

Czech, English, French, German, Italian, Japanese, Polish, Portuguese, Slovak, Spanish

Weight and Dimensions



  • Width: 270 mm (10.6 in.)
  • Height: 406 mm (16.0 in.)
  • Depth: 430 mm (16.9 in.)
  • Weight: 11.4 kg (25.1 lbs)
Reviews
Features
  • Optimize uptime with proven system reliability and an automated cleaning cycle
  • Experience infrequent and simple reagent reloading—easily change all three reagents in less than five minutes
  • Gain powerful patient and QC data management tools for paperless operations and to reduce clerical errors
  • Discover a more efficient use of laboratory counter space with the analyzer’s compact footprint—smallest in its class
  • Ensure a more accurate differential with proprietary dynamic gating
  • Improve flagging and reduce slide reviews while maintaining effective clinical sensitivity
  • Lower overhead costs by consuming fewer reagents and using less power due to a reduction in moving parts and a more intelligent, energy-optimizing design
  • Eliminate disposal costs with cyanide-, azide- and formaldehyde-free reagents
Hematology Essentials

Automated Cleaning Cycle

QC Data Management Tools

Proprietary Dynamic Gating

Compact Footprint
