SKU: C67723
Category: .

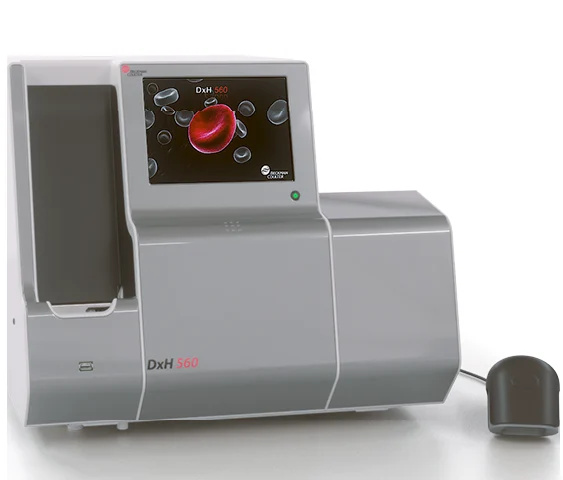

Beckman Coulter DxH 560 AL Hematology Analyzer

$34,455.00

mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
888.354.2968
myemail Email Us!
Get in Touch

The Beckman Coulter DxH 560 AL Hematology Analyzer is a sophisticated, efficient solution designed for streamlined laboratory operations. Featuring paperless data management and the capacity to store up to 30,000 patient records, this analyzer simplifies data handling while enhancing record-keeping accuracy. The DxH 560 offers hands-free, autonomous daily cleaning and startup, reducing manual maintenance and ensuring consistent performance. The system’s design includes simple, minimal reagent replacements, further optimizing workflow efficiency. With extended QC (eQC) capabilities, the DxH 560 AL ensures precise and reliable results. Additionally, the integrated monitor and keyboard provide a user-friendly interface, making operation straightforward and accessible.

Hematology Brand

Beckman Coulter

Features

  • Save time and resources: with a multi-tube, compact hematology analyzer that has proven reliability, paperless data management and autonomous instrument daily cleaning
  • Available when you need it: the DxH 560 is engineered for high uptime and system reliability at less than one service call per year
  • Eliminate system readiness delays: experience hands-free, autonomous daily cleaning and startup. The DxH 560 was designed with reliability in mind and allows for high walkaway time with autonomous daily start-up and system checks, hands-free daily cleaning, plus simple and few reagent replacements for maximized uptime
  • Load and go up to 50 samples: with on-the-fly continuous loading more than twice the capacity compared to the closest competitor
  • Extended QC (eQC): with onboard bias, precision and accuracy monitoring without the need for internet or extra fees
  • Reduce administrative errors and go paperless:: designed to work as hard as you do, the onboard data management in the DxH 560 can host up to 30,000 patient records—equivalent to a year’s worth of tests with typical usage
  • Keep analysis running smoothly throughout the day: store and manage just three reagents, with simple and quick replacement, compared to six reagents with other analyzers in its class
  • Test in tight spaces: with an integrated monitor and keyboard and only one external reagent, the DxH 560 requires up to 1/3 less laboratory counter space than other analyzers in its class

Specifications

Mode of Operation

Autoloader, 50 tube continuous feed capacity, open-tube mode

Sample Volume

17 μL of venous or micro-collected whole blood

Throughput

55 closed-tube samples per hour, 60 open-tube samples per hour

Menu/Test Parameters

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, LY%, LY#, MO%, MO#, NE%, NE#, EO%, EO#, BA%, BA#

RUO Parameters

IMM%, IMM#, LHD, MAF, PCT,PDW

Data Storage

30,000 patient results, including graphics, flags, codes and messages

QC Package

12 control files, each with a maximum of 150 runs, LJ plots, XB, XM and eIQAP with QC auto rerun

User Interface

Integrated 8.4 inch high resolution color touch screen; Handheld barcode

Power Requirements

  • 100–240 VAC 50–60 Hz
  • Single phase with ground Less than 120W

Carryover

<1.00% for WBC, RBC, HGB, PLT and 5-part differential

Ambient Temp/Altitude

18–32°C (64.4–89.6°F) / Up to 3,000 meters (9,842 feet)

Humidity

80% relative humidity (non-condensing) at 32°C (89.6°F)

Altitude

Up to 3,000 meters (9,843 feet)

External Storage

Supports USB 2.0 (five ports)

LIS

Bidirectional interface supports Ethernet communication via RJ45 and Serial RS-232 communication

Printer

Optional USB printer; laser or ink jet

Languages

Czech, English, French, German, Iberian Portuguese, Italian, Japanese, Romanian, Spanish, Russian

Weight and Dimensions

  • WIDTH 500 mm (19.7 in.)
  • HEIGHT 440 mm (17.3 in.)
  • DEPTH 460 mm (18.1 in.)
  • WEIGHT 22.0 kg (48.5 lbs.)
Reviews
Features
  • Paperless data management
  • Autonomous instrument daily cleaning
  • Hands-free, autonomous daily cleaning and startup
  • Simple and few reagent replacements
  • Extended QC (eQC)
  • Up to 30,000 patient records
  • Integrated monitor and keyboard
Hematology Essentials

Paperless Data Management

Hands-Free, Autonomous Daily Cleaning

Up to 30,000 Patient Records

Integrated Monitor and Keyboard
