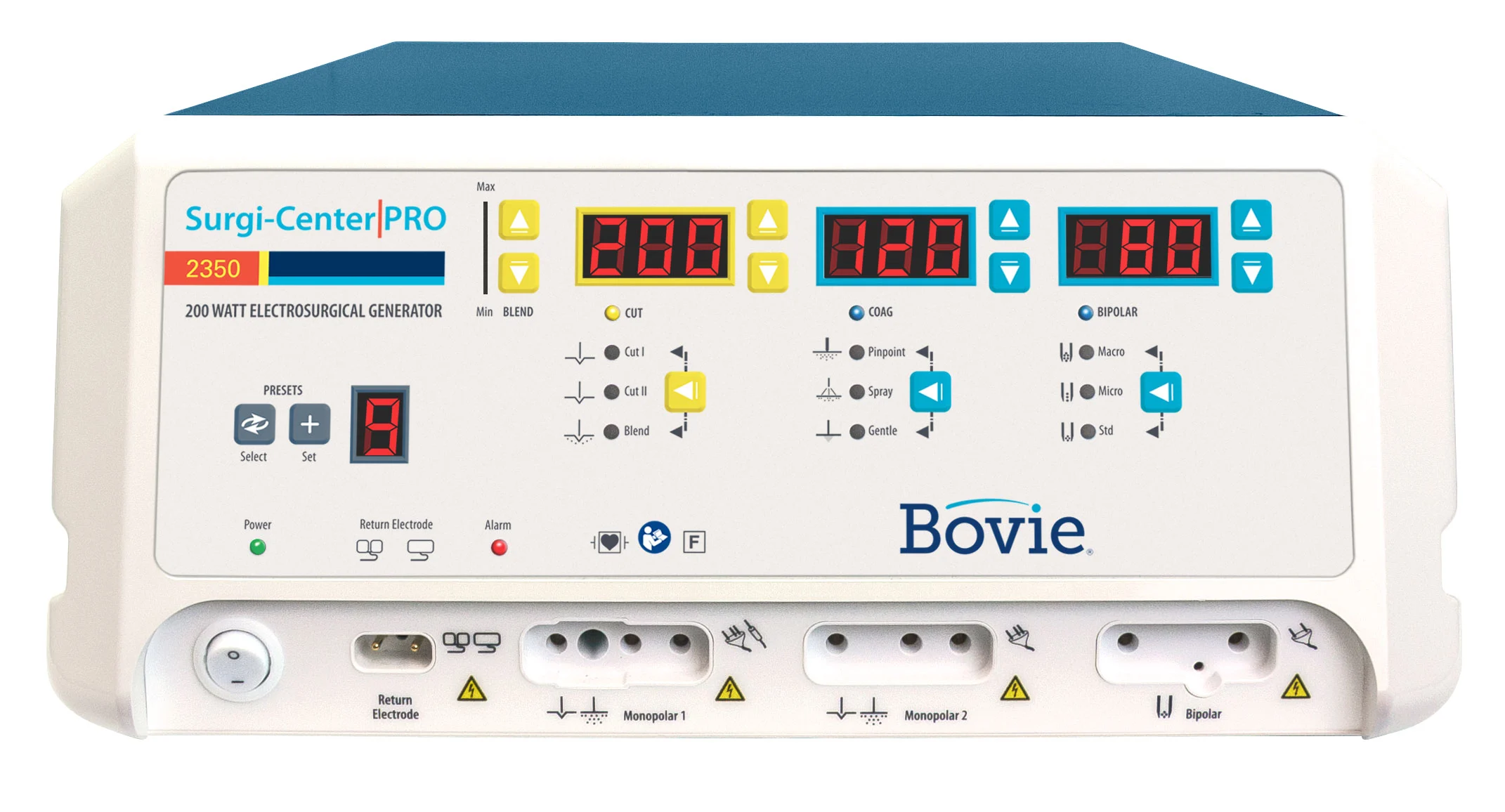

Bovie Surgi-Center | PRO 200W Electrosurgical Generator
$5,675.00
Questions? Speak with a Product Specialist!
Bovie Surgi-Center Pro High Frequency Electrosurgical Generator
The Surgi-Center|PRO (A2350) is a 200 watt high power, operating room generator, by Bovie. The unit incorporates the power and safety of a premium OR generator at a significant savings to the medical facility. The system delivers 12 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the Bovie Surgi-Center|PRO includes technology such as BovieNEM™ return split pad contact quality monitoring, BovieFDFS™ tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures. The Bovie Surgi-Center|PRO is supported by Bovie’s unprecedented 4-year standard warranty.
| Electrosurgery Brand | Symmetry Surgical |
|---|
Specifications
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 200 | 1000V | 1.7 ± 20% | 490 kHz ± 4.9 kHz |
| Cut II | 200 | 750V | 1.7 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (1) | 200 | 1320V | 1.8 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (2) | 200 | 1475V | 2.0 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (3) | 200 | 1650V | 2.2 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (4) | 200 | 1870V | 2.4 ± 20% | 490 kHz ± 4.9 kHz |
| Pinpoint Coagulation | 120 | 1800V | 3.1 ± 20% | 490 kHz ± 4.9 kHz |
| Spray Coagulation | 120 | 4000V | 6.0 ± 20% | 350 to 450 kHz |
| Gentle Coagulation | 120 | 450V | 1.6 ± 20% | 490 kHz ± 4.9 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Macro Bipolar | 80 | 600V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
| Micro Bipolar | 80 | 500V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
| Standard Bipolar | 50 | 250V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
Technical Specifications:
- Lifespan: Reusable
- Sterilization Status: Non-sterile
Electrical Specifications:
- Cooling System: Passive Cooling
- Technology: Isolated RF Output
- Audible/Visible Output Meter: Yes
- Pre-set Feature: Yes
- Monopolar HP Ports: 2 Port(s)
- Connector Ports/Power Switch: White
- Contact Monitoring Systems: Bovie NEM™
- Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C)
- Dual Activation Tone Alert: Yes
Safety Specifications:
- Latex-Free: Yes
