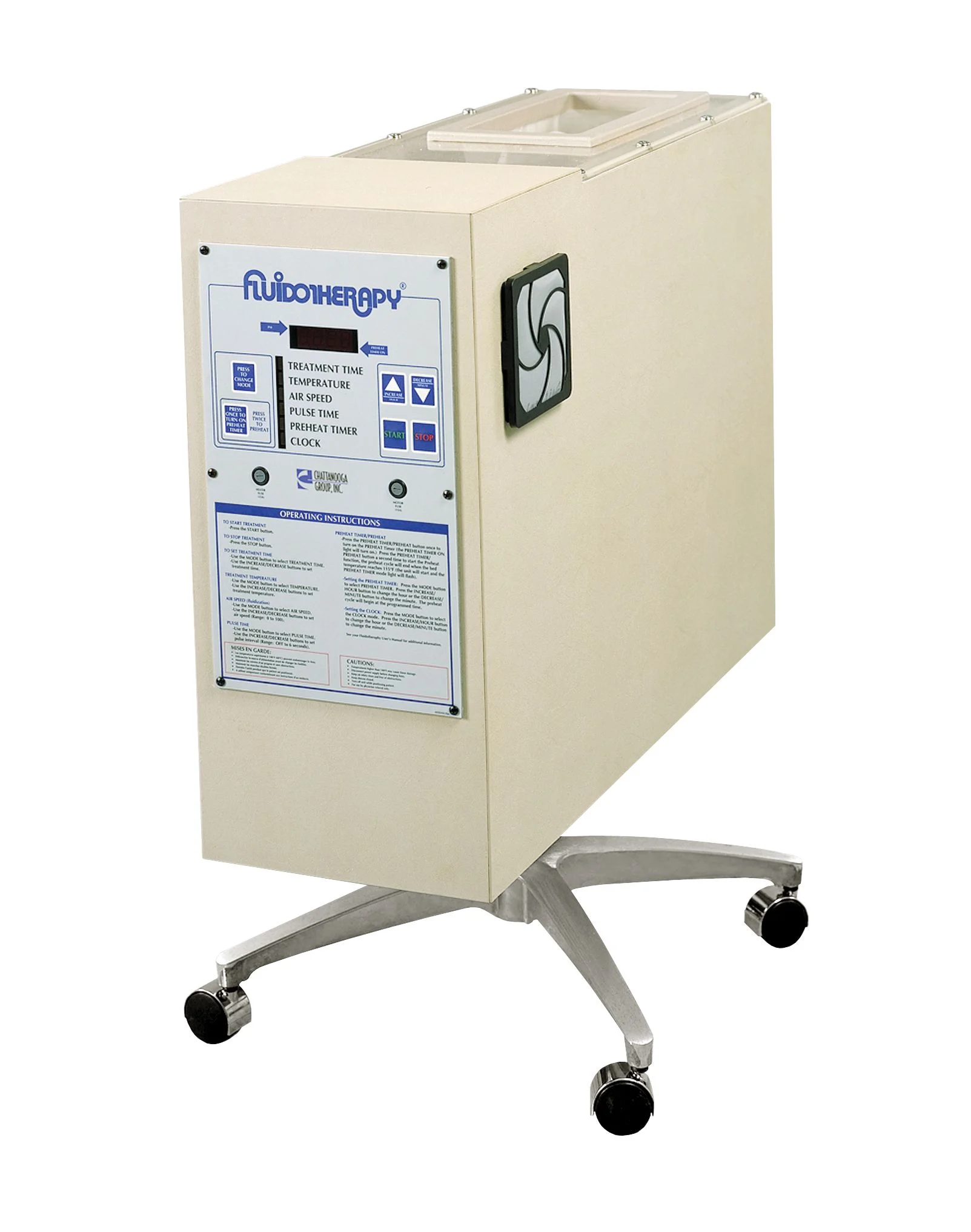

Chattanooga Fluidotherapy Unit

$7,308.55$9,253.00

mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
888.354.2968
myemail Email Us!
Get in Touch

The Chattanooga Fluidotherapy Unit offers an innovative dry heat therapy system designed to increase circulation, relieve pain, and enhance joint mobility. The unit uses fluidized Cellex particles to create a massaging action that provides warmth and stimulates local circulation. This unique technology allows for increased limb buoyancy, enabling patients to perform resistive exercises with less pain. Heat-induced vasodilation enhances localized blood flow, improving joint range of motion by increasing collagen elasticity. The unit also provides gentle sensory stimulation through micro-massage, stimulating skin mechanoreceptors to decrease pain and improve mobility. Adjustable airflow options create an antigravity effect, elevating the limb to aid fluid movement and prevent edema build-up. Ideal for therapeutic environments, this versatile unit enhances both recovery and rehabilitation.

Physical Therapy Brand

Physical Therapy Equipment Type

Configuration

Standard Single Extremity Unit, Double Extremity Unit

Features

  • Dry heat increases circulation and assists in pain relief
  • Massaging Action provides warmth, increased local circulation and pain diminishing effects to help increase joint range of motion
  • Limb Buoyancy allows patients to freely perform a variety of resistive exercises with increased mobility and decreased pain. The fluidized Cellex particles act like a low viscosity fluid, allowing limbs to be suspended much like in a liquid state.
  • Promote tissue healing
  • Heat induced vasodilation
  • Increases localized blood flow
  • Increases cellular metabolism and regeneration of healthy tissue via improved oxygen consumption
  • Improves joint range of motion due to increased collagen elasticity Sensory stimulation
  • Gentle sensory stimulation of the skin through rubbing of the Cellex¨ particles against the skin surface
  • Stimulates skin mechanoreceptors
  • Induces a cutaneous micro massage, helping to decrease pain and increase range of motion
  • Air flow and high/low features create an antigravity effect that maintains the limb in a buoyant, elevated position to aid in the movement of fluid and help prevent the build up of edema
  • The effectiveness of Fluidotherapy was compared with Hydrotherapy and Paraffin wax treatments by in vivo temperature measurements of the joint capsule and muscles of the hands and feet. Fluidotherapy applied at 118°F resulted in a maximum joint capsule temperature rise of 16.2°F and a 9.5°F rise in muscle temperature. This was compared to a 13.5°F and 8.1°F rise in temperature, respectively for Paraffin wax treatments. Lastly, Hydrotherapy bath applied at 102°F resulted in only a 10.8°F rise in joint capsule temperature and 7.7°F rise in muscle temperature. [Comparison of In Vivo Temperature Produced by Hydrotherapy, Paraffin Wax and Fluidotherapy. Borrell RM, Parker R, Henley EJ, Masley D, Repinecz]
  • Measurements of time integrated heat absorption by a hand immersed in a Fluidotherapy unit at 120°F, a Whirlpool at 105.2°F and a Paraffin wax bath at 126°F show the average heat absorption to be 17.2, 5.6 and 4.8 BTU respectively during a 15 minute treatment. [Fluidotherapy: Evaluation of a New Heat Modality? Borrell RM, Henley EJ, Ho P, Hubbell MK]

Specifications

Product Weight is without Cellex Dry Head Media

Dedicated circuit is recommended

Fluidotherapy Standard Single Extremity Unit

Mains Power 120V, 50/60 Hz, 11A
Product Weight 70 lb (31.7 kg)
Shipping Weight 100 lb (45.4 kg)
Dimensions 34″ x 11.5″ x 33″ (86.4 cm x 29.2 cm x 83.8 cm)
Variable Adjustments Time, Temperature and Air Speed
Modes of Operation Continuous and Pulsed
Pulse Mode OFF to 6 seconds; ON/OFF
Treatment Time 1-99 minutes and Continuous
Operating Temperature Dependent upon Air Speed selected 88° F to 125° F (31° C to 52° C)
Optimal Performance 115° to 118° at 50% Air Speed
Air Speed 0% to 100% (5% increments)
Safety Class Class I, Type B
Safety Tests UL 60601-1



Fluidotherapy Double Extremity Unit

Mains Power 120V, 50/60 Hz, 11A
Product Weight 60 lb (27.2 kg)
Shipping Weight 100 lb (45.4 kg)
Dimensions 34″ x 18.5″ x 33″ (86.4 cm x 47 cm x 83.3 cm)
Variable Adjustments Time, Temperature and Air Speed
Modes of Operation Continuous and Pulsed
Pulse Mode OFF to 6 seconds; ON/OFF
Treatment Time 1-99 minutes and Continuous
Operating Temperature Dependent upon Air Speed selected 88° F to 125° F (31°C to 52°C)
Optimal Performance 115° to 118° at 50% Air Speed
Air Speed 0% to 100% (5% increments)
Safety Class Class I, Type B
Safety Tests UL 60601-1
Features
  • Dry heat increases circulation and assists in pain relief
  • Massaging Action provides warmth, increased local circulation and pain diminishing effects to help increase joint range of motion
  • Limb Buoyancy allows patients to freely perform a variety of resistive exercises with increased mobility and decreased pain. The fluidized Cellex particles act like a low viscosity fluid, allowing limbs to be suspended much like in a liquid state.
  • Promote tissue healing
  • Heat induced vasodilation
  • Increases localized blood flow
  • Increases cellular metabolism and regeneration of healthy tissue via improved oxygen consumption
  • Improves joint range of motion due to increased collagen elasticity Sensory stimulation
  • Gentle sensory stimulation of the skin through rubbing of the Cellex¨ particles against the skin surface
  • Stimulates skin mechanoreceptors
  • Induces a cutaneous micro massage, helping to decrease pain and increase range of motion
  • Air flow and high/low features create an antigravity effect that maintains the limb in a buoyant, elevated position to aid in the movement of fluid and help prevent the build up of edema
Fluidotherapy Unit Essentials

Heat Induced Vasodilation

Stimulates Skin Mechanoreceptors

Limb Buoyancy

Gentle Sensory Stimulation of the Skin
