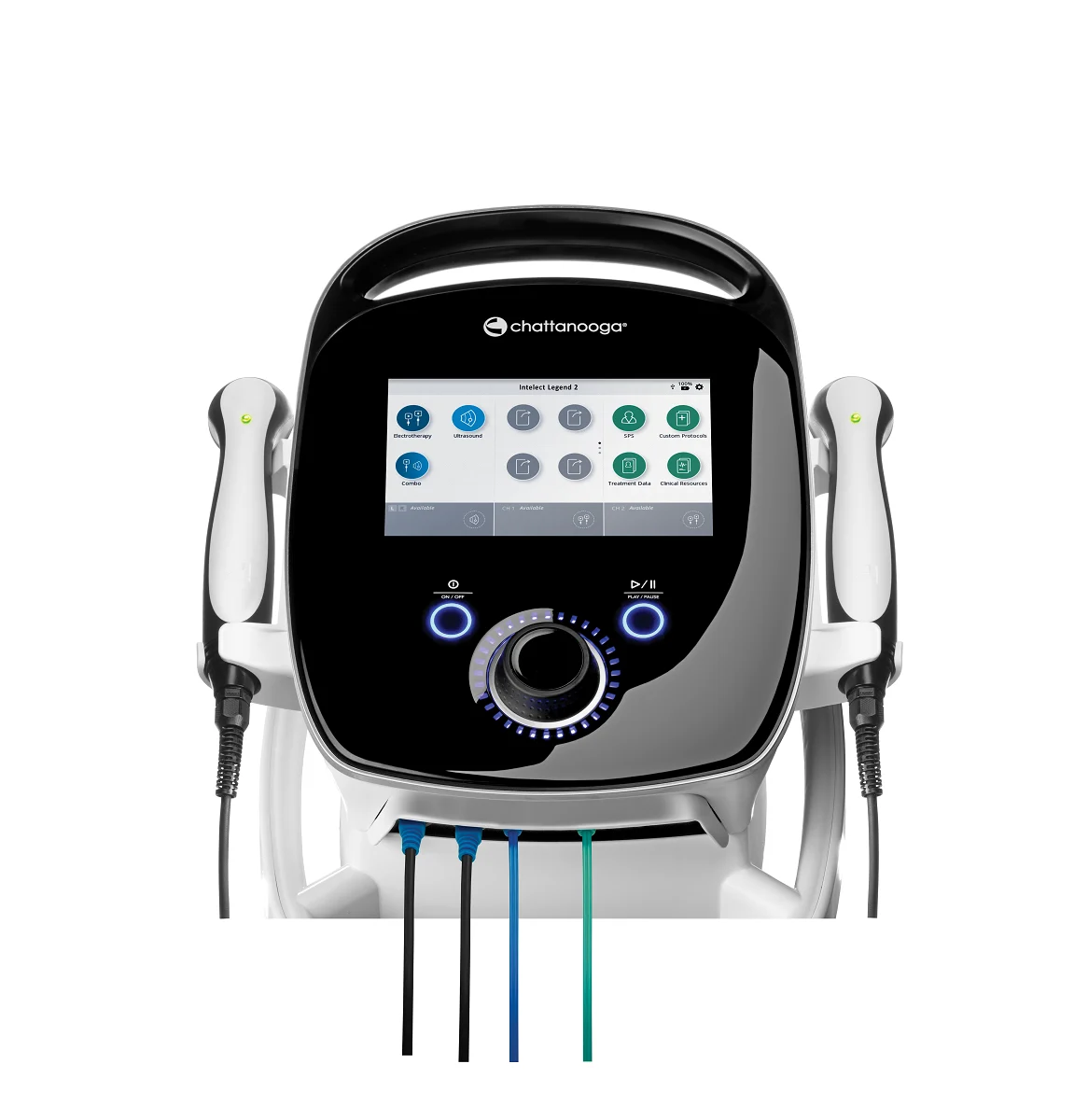

Intelect Legend 2 2/4 Channel Combo

Questions? Speak with a Product Specialist!

Physical Therapy Brand	Chattanooga
Physical Therapy Equipment Type	Clinical Electrotherapy
Configuration	2 Channel Combo, 4 Channel Combo

Physical Therapy Brand

Physical Therapy Equipment Type

Configuration

2 Channel Combo, 4 Channel Combo

Features

2&Go Treatments
Save up to 12 preset or custom protocols directly on the home screen to begin treatments within 2 button pushes.

VMS Waveform
Chattanooga’s proprietary VMS waveform achieves stronger muscle contractions and less neural fatigue while still providing a more comfortable experience for the patient.

SPS Menu
Therapists are able to set up a treatment within 3 button pushes by selecting an indication rather than having to select every waveform and parameter.

Magnetic Cart
Optional cart with magnetic attachment removes the need for any tools during installation making it simple to move the device throughout the clinic.

Improved battery life
Removes the need for excess cables and provides all day use in portable applications.

12 Electrotherapy Waveforms
VMS, VMS Burst, Interferential, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, HAN, Direct Current, VMS FR

Sleek Industrial Design
Impressive aesthetics combined with a familiar app-like software experience makes the device more intuitive and enjoyable for therapists and patients.

Dual frequency ultrasound
1MHz or 3.3 MHz capability with 1cm2, 2cm2, 5cm2 and 10cm2 applicator options.

Wide range of accessories available

Specifications

Mains Power

100-240 VAC, 50/60 Hz, 1.0 A

Weight

6.8 lbs (3.1 kg)

Shipping Weight

10.8 lbs (4.9 kg)

Dimensions

14″L x 13.4″W x 5.9″H (35.5 cm x 34 cm x 15 cm)

Electrical Safety Class

Class 1, Electrotherapy Type B, Ultrasound Type B

Safety Tests

IEC 60601-1, ISO 10993-1, IEC 60601-2-5, IEC 60601-1-2, IEC 60601-2-10, IEC 60601-1-6, IEC 62366-1, IEC 62304, IEC 62133, ISO 14971

Reviews

Features

2&Go Treatments: Save up to 12 preset or custom protocols directly on the home screen to begin treatments within 2 button pushes.
VMS Waveform: Chattanooga’s proprietary VMS waveform achieves stronger muscle contractions and less neural fatigue while still providing a more comfortable experience for the patient.
SPS Menu: Therapists are able to set up a treatment within 3 button pushes by selecting an indication rather than having to select every waveform and parameter.
Magnetic Cart: Optional cart with magnetic attachment removes the need for any tools during installation making it simple to move the device throughout the clinic.
Improved battery life: Removes the need for excess cables and provides all day use in portable applications.
12 Electrotherapy Waveforms: VMS, VMS Burst, Interferential, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, HAN, Direct Current, VMS FR
Sleek Industrial Design: Impressive aesthetics combined with a familiar app-like software experience makes the device more intuitive and enjoyable for therapists and patients.
Dual frequency ultrasound: 1MHz or 3.3 MHz capability with 1cm2, 2cm2, 5cm2 and 10cm2 applicator options.
Wide range of accessories available
