Features

• 2.8 inch TFT, monitoring EtC02/C02, RR and Sp02, PR
• Temperature, Pressure compensation system and Zero readjustment system
• Balance gas compensation minimizing infl uence against other gases
• Lung pressure and temperature compensation (BTPS compensation) avaiable
• Applicable for intubated or non-intubated patients
• Pump flux for adult and infant
• Water filter specially designed for heavy humid environment
• Audio and Visual alarm for exceeding limits and Apnea
• 24 hours graphic trend can be stored after power-off
• Nellcor Sp02 optional
• USB Connectivity to PC for data transfer
• Accurate monitoring even with weak pulse signals.
• Reliable monitoring in motional situation.
• Provides graphical trends and plethysmographic waveform

Brochure

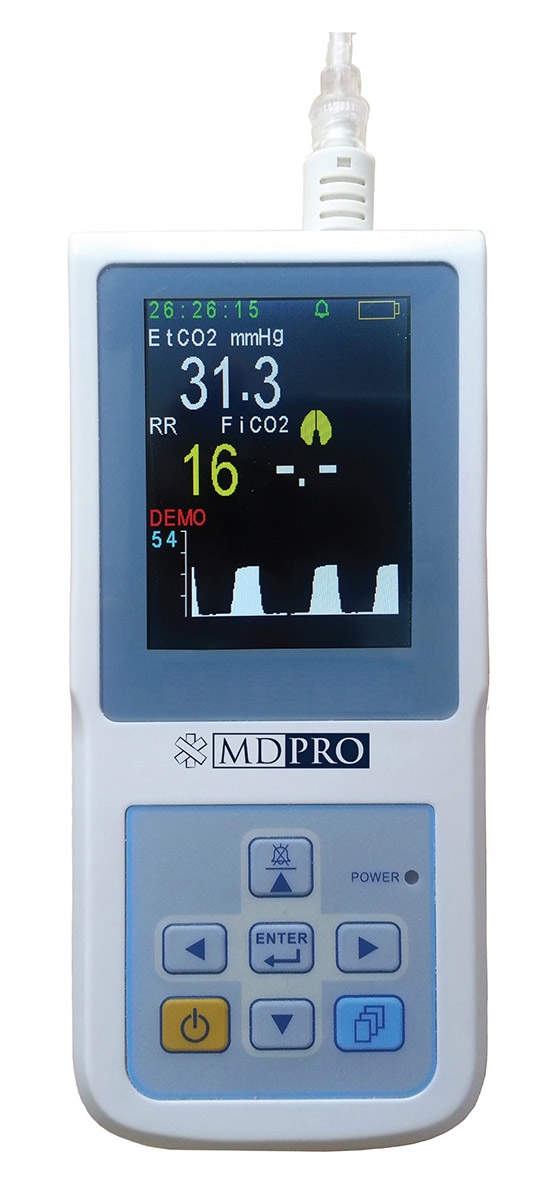

MDPRO MicroCap 9 Capnograph Oximeter Brochure

Specifications

EtC02/C02

EtC02/C02 range: 0 -150mmHg(0-20kPa,or 0-20%(V/V))

Accuracy: ±2mmHg when 0-40mmHg ±5%(reading) when> 41-70mmHg ±8%(reading) when > 71-100mmHg ±10%(reading) when> 101-150mmHg

Update: Every breath, 10sec, 20sec or 30sec selectable

Trend length: 24 hours

RESPIRATION RATE

Range: 3-150t/min

Accuracy: ±1 %(reading) or ±1 times/min whichever is greater

Trend length: 24 hours

Flux: 50-250cc/min selectable

SpO2

Oximetry saturation range: 0-100%

Accuracy: ±2% when 70-100% ±3% when 50-69%

Trend length: 24 hours

PULSE RATE

Range: 30-250 bpm

Accuracy: ±2bpm or ±2%(reading) when 30-250bpm

Trend length: 24 hours

POWER

AC input: 100V-250V, 50Hz/60Hz

AC power consumption: 5W

OPERATION

Working temperature: 5-40 ºC

Humidity: 30 – 75% (non-condensing)

Atmospheric pressure: 86 – 106kPa

BATTERY

Battery type: Built-in rechargeable lithium battery

Battery capacity: 3.6V, 3000mAh

Working time: 10 hours

PHYSICAL DATA

Dimension: 70mm(W) x 160mm(H) x 40mm(D)

Weight: 600grams

LANGUAGE

English/ Spanish/ Dutch
