Features

• Power Options
  Operates on AC line voltage or an internal battery that provides 12 hour runtime with a 4 hour quick recharge
• Easy to Read
  Bright LED displays and large screen allow easy reading, even from across the room
• Versatile and Capable
  Adaptable for use in sub-acute to emergency room settings—and everywhere in between; specified for use in motion and low perfusion
• Internal Memory
  Records up to 115 hours of data—ideal for extended monitoring
• User Friendly
  Three distinct icons offer helpful indications of signal status
• Flexible Alarms
  Includes patient security mode and user-defined default that offers customizable patient settings

Specifications

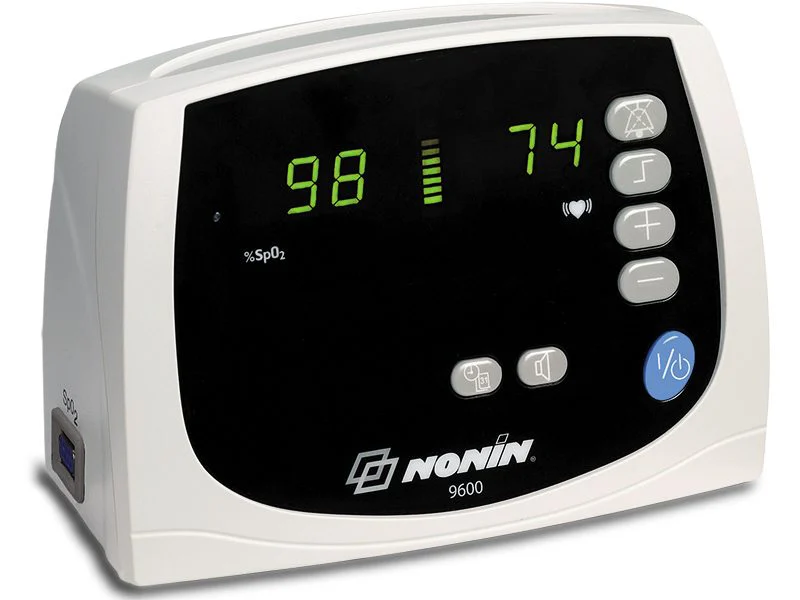

Oximeter

Oxygen Saturation Range: (%SpO2) 0% to 100%
Pulse Rate Range: 18 to 300 pulses per minute

Displays

• Numeric Displays: 3-digit LED’s, Tricolor (red, green, amber)
• Pulse Strength Indicator: Tricolor LED segments
• Pulse Quality Indicator: Amber LED

Accuracy

Blood Oxygen Saturation (%SpO2 ±1 SDb)

• No Motion: Adults, Pediatrics 70 – 100% ±2 digits
  Neonates 70 – 100% ±3 digits
• Motion: Adults, Pediatrics 70 – 100% ±2 digits
  Neonates 70 – 100% ±3 digits
• Low Perfusion: Adults, Pediatrics 70 – 100% ±2 digits
  Neonates 70 – 100% ±3 digits

Pulse Rate

• No Motion: 18 to 300 bpm ±3 digits
• Motion: 60 to 240 bpm ±5 digits
• Low Perfusion: 60 to 240 bpm ±3 digits

Temperature

• Operating: +32° to +122°F (+0° to +50°C)
• Storage/Transportation: -22° to +122°F (-30° to +50°C)

Humidity

• Operating: 10% to 90% noncondensing
• Storage/Transportation: 10% to 95% noncondensing

Altitude

• Operating: Up to 40,000 feet (12,192 m)

Power Requirements

• Mains: 100-240 VAC 50-60 Hz
• DC Input: 12 VDC 1.5A AC adapter

Internal Power

• Battery: 7.2 volt battery pack (6 cells)
• Operating: Minimum 12 hours of continuous operation with a fully charged battery pack
• Storage: 27 days
• Recharge: 4 hours

Dimensions: 7.25″ wide x 5.5″ high x 4.5″ deep
18.4 cm x 14 cm x 11.4 cm
Weight (excluding Pole Mount System): 2.2 pounds (1 kg)
Memory: 115 hours
Warranty: 3 years

Classifications per IEC 60601-1/CSAGO1.1/UL2601-1

• Type of Protection: Class I (when on AC power with 300PS-UNIV battery charger)
  Class II (when on AC power with 300PS-NA, 300PS-EU, or 300PS-UK battery charger)
  Internally powered (on battery power)
• Degree of Protection: Type BF-Applied Part
• Enclosure Degree of Ingress Protection: IPX0
• Mode of Operation: Continuous

Nurse Call

• Maximum Voltage: 30 V, AC or DC
• Maximum Load: Current 100mA
• Output Impedance: 30 ohms max
• Output: Normally Open or Normally Closed; switch selectable
• Output Connector: 0.141” miniature phone jack
