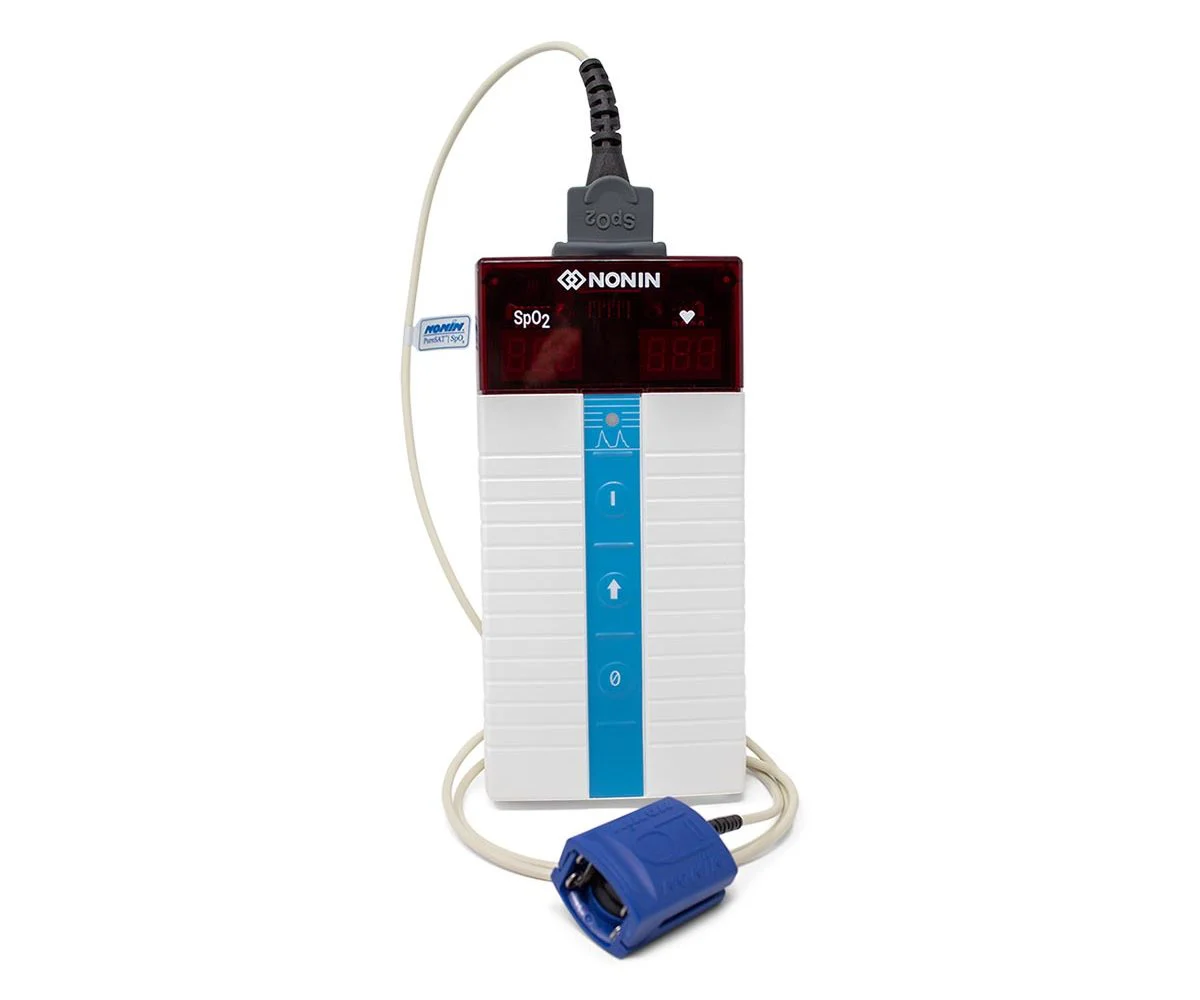

Features

• Easy to Use
  Features bright LED displays and easy 3-button operation
• Perfusion Indicator
  Tri-color perfusion indicator provides immediate feedback on pulse quality
• Reliable Results
  PureSAT® technology uses intelligent pulse-by-pulse filtering to provide precise oximetry measurements
• Sensor Options
  Compatible with a full line of Nonin PureLight® sensors

Specifications

Oxygen Saturation Display Range: 0% to 100% SpO₂

Pulse Rate Display Range: 18 to 321 beats per minute (BPM)

Accuracy – Sensors: Declared accuracy data for compatible sensors can be found in Nonin’s Sensor Accuracy document.

Measurement Wavelengths and Output Power**:

• Red: 660 nanometers @ 0.8 mW maximum average

• Infrared: 910 nanometers @ 1.2 mW maximum average

Indicators:

• Pulse Quality Indicator: LED, tricolor

• Numeric Displays: 3-digit, 7-segment LEDs, red

Temperature:

• Operating: -20 to +40 °C (-4 to +104 °F)

• Storage/Transportation: -40 to +70 °C (-40 to +158 °F)

Humidity:

• Operating: 10% to 90% non-condensing

• Storage/Transportation: 10% to 95% non-condensing

Altitude:

• Operating: Up to 4,000 meters (13,123 feet)

• Hyperbaric Pressure: Up to 4 atmospheres

Power Requirements:

• Six 1.5V AA-size alkaline batteries.
• 100 hours maximum display brightness.
• 160 hours with normal display brightness.

Dimensions: 8 cm W x 15 cm H x 2.5 cm D (3 in W x 6 in H x 1 in D)

Weight: 280 g (10 oz) (with alkaline batteries)

Classifications per IEC 60601-1 / CAN/CSA-C22.2 No. 601.1 / UL60601-1:

• Type of Protection: Internally powered (on battery power)

• Degree of Protection: Type BF-Applied Part

• Mode of Operation: Continuous

Enclosure Degree of Ingress Protection: IP33
