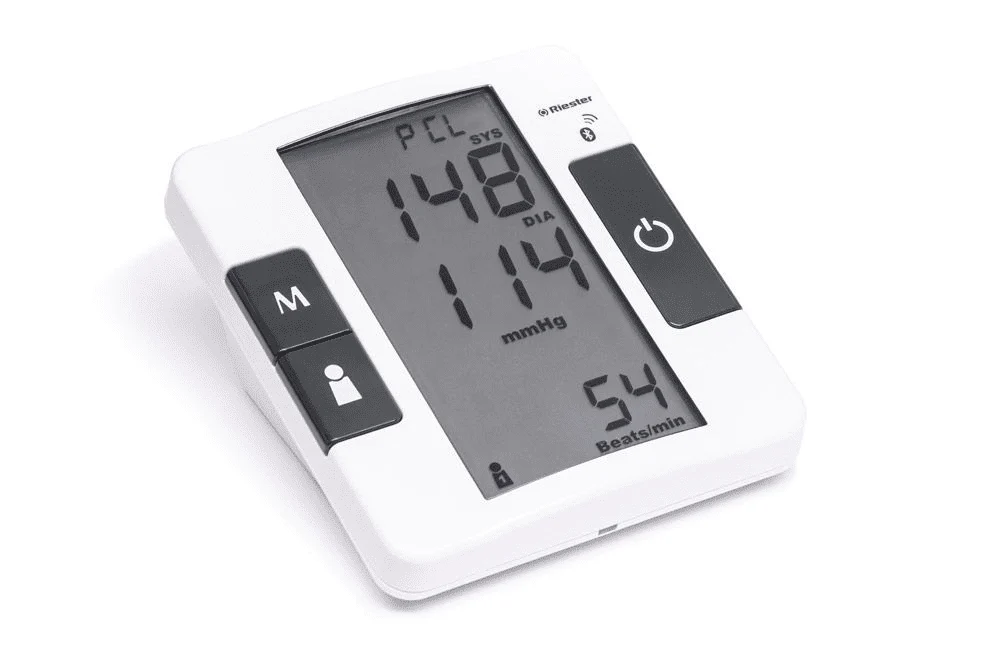

Riester Ri-champion smartPRO

Questions? Speak with a Product Specialist!

ABPM Brand	Riester
Configuration	Smart PRO without BT and W-cuff, Smart PRO+ with BT and W-cuff, Smart PRO without BT and S-cuff, SmartPRO+ with BT and S-cuff

ABPM Brand

Configuration

Smart PRO without BT and W-cuff, Smart PRO+ with BT and W-cuff, Smart PRO without BT and S-cuff, SmartPRO+ with BT and S-cuff

Features

World class, clinical grade NIBP monitor

Arrythmia detection and clinically validated meeting standard EN1060-4, NIBP clinical investigation

Fast and quiet operation

200 Measurements on one set of 4 AA batteries

Large easy to read backlit screen

CE / FDA Approved

Accuracy to ±3 mmHg or ±2% of reading

Irregular heartbeat detection

Averaging measurement function

IP21 Water ingress protection

Optional Bluetooth^® connectivity

Specifications

System Performance


Power	Four 1.5V AA alkaline batteries
Battery Life	200 readings
Size of Monitor w/o Cuff	141 (L) x 121 (W) x 72 (H)mm
Weight	350g without batteries
Cuff Sizes	S (small) 15 – 24cm (5.9 – 9.4 inches) with air tube 80 cm W (Wide size) 24 – 43 cm (9.4 – 16.9 inches) with air tube 80 cm
Memory	400 records
Operating Conditions	5°C to 40°C (41°F to 104°F), 15% to 93% relative humidity, 700 hPa to 1060 hP
Storage / Transportation Conditions	-25°C to 70°C (-13°F to 158°F), 10% to 95% relative humidity
IP Classification	IP21

Power

Four 1.5V AA alkaline batteries

Battery Life

200 readings

Size of Monitor w/o Cuff

141 (L) x 121 (W) x 72 (H)mm

Weight

350g without batteries

Cuff Sizes

S (small) 15 – 24cm (5.9 – 9.4 inches) with air tube 80 cm
W (Wide size) 24 – 43 cm (9.4 – 16.9 inches) with air tube 80 cm

Memory

400 records

Operating Conditions

5°C to 40°C (41°F to 104°F), 15% to 93% relative humidity, 700 hPa to 1060 hP

Storage / Transportation Conditions

-25°C to 70°C (-13°F to 158°F), 10% to 95% relative humidity

IP Classification

IP21

Power Management


Power Saving	Automatic power off if system idle for 3 minutes
Power Supply Input	DC + 6V / 1A (max) via Power Plug

Power Saving

Automatic power off if system idle for 3 minutes

Power Supply Input

DC + 6V / 1A (max) via Power Plug

Blood Pressure Measurement Performance


Heart Rate Range:	40 – 199 beat per minute
Systolic Measurement Range:	60 mmHg – 255 mmHg
Diastolic Measurement	30 mmHg – 195 mmHg
Pulse Rate Measurement Range	40 – 199 beats / minute
Maximum Inflation Pressure	280 mmHg
Accuracy of Pressure	±3 mmHg or ±2% of reading
Accuracy of Pulse rate	±4% of reading
Measurement Unit	Either mmHg or KPa

Heart Rate Range:

40 – 199 beat per minute

Systolic Measurement Range:

60 mmHg – 255 mmHg

Diastolic Measurement

30 mmHg – 195 mmHg

Pulse Rate Measurement Range

40 – 199 beats / minute

Maximum Inflation Pressure

280 mmHg

Accuracy of Pressure

±3 mmHg or ±2% of reading

Accuracy of Pulse rate

±4% of reading

Measurement Unit

Either mmHg or KPa

Features

World class, clinical grade NIBP monitor
Arrythmia detection and clinically validated meeting standard EN1060-4, NIBP clinical investigation
Fast and quiet operation
200 Measurements on one set of 4 AA batteries
Large easy to read backlit screen
CE / FDA Approved
Accuracy to ±3 mmHg or ±2% of reading
Irregular heartbeat detection
Averaging measurement function
IP21 Water ingress protection
Optional Bluetooth^® connectivity
