SKU: RV700-B

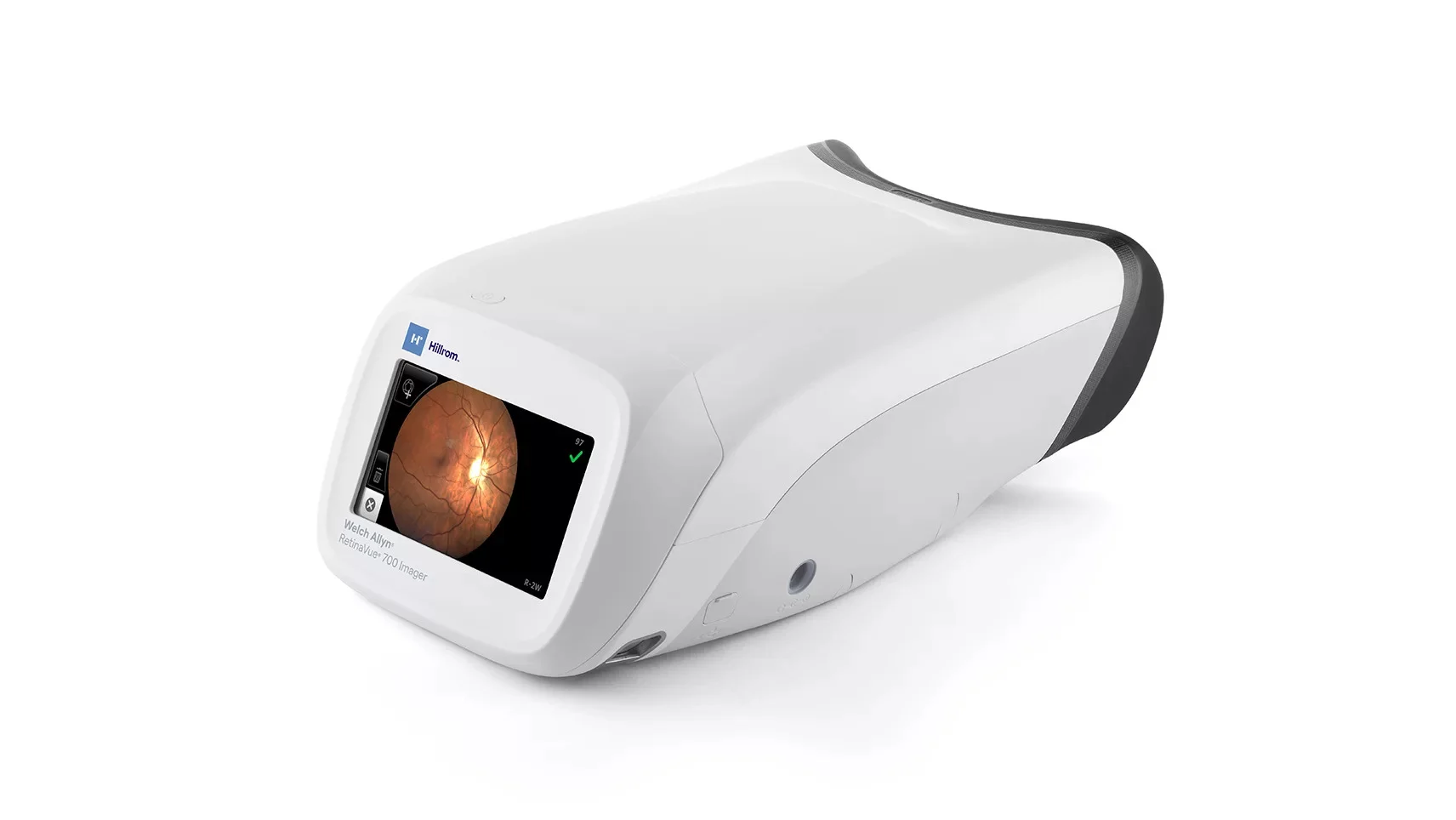

Welch Allyn RetinaVue 700 Imager

$11,680.00

mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
888.354.2968
myemail Email Us!
Get in Touch

This Welch Allyn RetinaVue 700 Imager is an easy-to-use smart retinal camera offers an automated retina imaging experience, featuring auto-alignment, auto-focus and auto-capture. This imager provides you with flexible options for your workflow, including EMR connectivity and WiFi for efficient information transfer and seamless integration. The RetinaVue 700 Imager works exclusively with HIPAA-compliant, FDA-cleared RetinaVue Network software with end-to-end data encryption (a RetinaVue Network software subscription is required and priced per camera, per month). This retinal imager is a key part of the RetinaVue care delivery model, allowing primary healthcare providers to transfer images to be reviewed by ophthalmologists at RetinaVue, P.C. or another preferred specialist.

Diagnostic Set Brand

Features

  • 2.5 mm small pupil capability requires little to no chemical dilation (see directions for use)
  • 60º wide field of view
  • Meets ISO 10940 optical standard for ophthalmic instruments
  • RetinaVue Network software is hosted on the Microsoft Azure cloud
  • Small, handheld design is perfect for performing retinal exams in busy clinics and mobile healthcare applications
  • The Welch Allyn RetinaVue care delivery model can help you improve HEDIS, Star and HCC risk factors by closing care gaps for patients living with diabetes

Specifications

  • Field of View 60 degree (Typical)
  • Diopter Range -20 to +12 diopter (Typical)
  • Dimensions
    Length: 11.4 inches (290.2 mm)
    Width: 6.6 inches (167 mm)
    Height: 4.8 inches (106 mm)
  • Weight
    Standard Capacity Battery: 2.8 lbs (1270 grams)
    High Capacity Battery: 3.0 lbs (1361 grams)
  • Illumination
    Preview Mode: Infrared LED
    Image Capture: Natural White LED
  • Focus Automatic and Manual Focus
  • File Transfer
    Micro USB Port to PC running RetinaVue Network Client
    802.11a/b/g/n Wireless Radio for transfer to RetinaVue Network
  • Battery
    Standard Capacity Rechargeable Lithium Ion Battery: 7.2V / 3200 mAh
    High Capacity Rechargeable Lithium Ion Battery: 7.2V / 6400 mAh
  • Power Adapter Input: 100~240 VAC, 50/60 Hz, 1.0 – 0.5A; Output: 12V DC, 3A
  • Operating Time
    Standard Capacity Battery: three hours continuous operation time
    High Capacity Battery: seven hours continuous operation time
  • Charging Time
    Standard Capacity Battery: three hours to fully charge the empty
    standard capacity (2-cell) battery via 3A@12V DC adapter
    High Capacity Battery: five hours to fully charge the empty high capacity
    (4-cell) battery via 3A@12V DC adapter
  • Camera Resolution 2592 x 1944 pixels (5MP)
  • Image Format Encrypted JPEG, DICOM
  • Main Power 100~240 VAC, 50/60 HZ
  • Interface Micro USB
  • LCD Monitor 4.3 inch
